Electric Unscrewing Devices

电动螺纹旋转脱模机构

产品目录下载

产品3D图下载

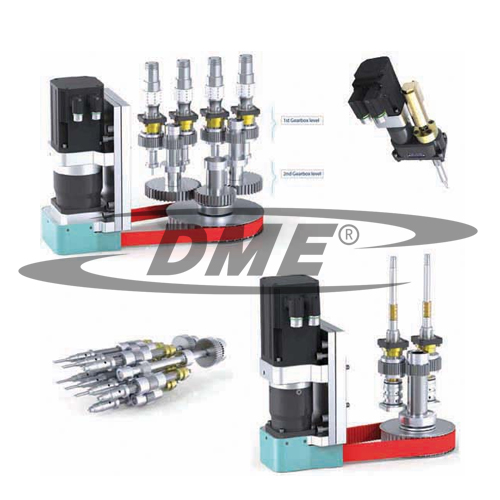

In servo unscrewing devices with one gearbox level, several spur wheels are driven by a central pinion shaft RZW. For the design of the system by our project engineers the following information (if available) is needed and applied:

Plastic part

    • Thread diameter and length
    • Wall thickness and calculated shrinkage
    • Type of plastic and fillers

Injection mold

    • Maximum tool size and tool height
    • The number, layout and desired distance of the cavities
    • Threaded cores with cooling

Process

    • Mold and melt temperature
    • Unscrewing time and overall cycle time
    • Cleanliness level (clean zone, clean room)

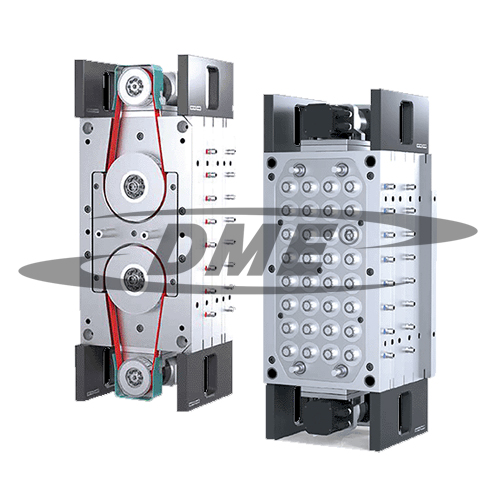

The following figure illustrates arrangement examples of systems with one a single level of gears.



    • The cavities can be arranged in a square, rectangular or circular pattern
    • Execution of the threaded cores and optional cooling according to customer specification:
    1. Servo Multidrive SMA
    2. Servo timing belt unit SZE
    3. Clamping plate LMP
    4. Spur wheel STR
    5. Pinion shaft RZW
    6. Threaded core set
    7. Cooling option RKE
